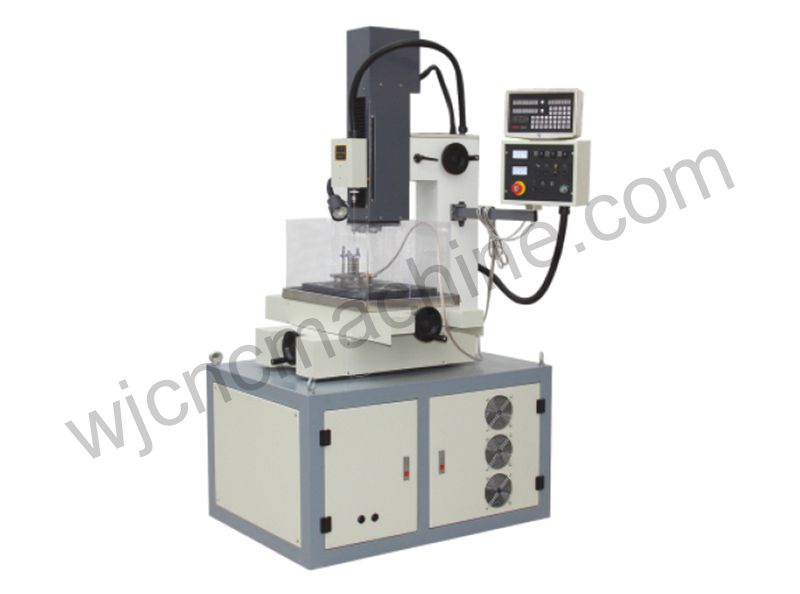

High-Speed Drilling EDMS
Product category: High-Speed Drilling EDMS
Product model: WJD730
Brand: Wenjie CNC
Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.
产品详情
The electro discharge drilling machine tool is mainly used for wire cutting EDM holes, chemical fiber spinneret, spinneret plate holes, filter plate, group holes of screen plate, engine blades, heat emission holes of cylinders and oil and gas holes of hydraulic and pneumatic valves, etc. It can also be used to corrode broken iron head and screw tap in the workpiece, without damaging the original hole or thread. The machinable aperture is ￠0.3～￠3.0; the maximum ratio of pit-depth to pit-diameter can reach up to 300:1; penetration can be achieved directly from slopes and hook faces. Wenjie EDM small hole machine has the characteristics of precision linear bearing, low loss, high efficiency, convenient operation, two shafts equipped with a digital display device and fast processing speed, etc.
Technical parameter
| Type | WJD730 |
| Electrode diameter（mm） | Ф0.3-Ф3.0 |
| Work head travel（mm） | 250 |
| Z-axis servo travel（mm） | 290 |
| Z-axis Max Adjust Speed（mm/min） | 120 |
| Circumgyrate Head（C axis）Rev | 60 |
| Worktable Size（mm） | 340×440 |
| X-Y travel（mm） | 300×350 |
| The maximum space between the guider and worktable（mm） | 70-290 |
| Worktable high（mm） | 950 |
| Max processing current（A） | 30 |
| Input max power（kw） | 3.5 |
| Power supply input way（V/Hz） | 380/50 |
| Work flume capability（L） | 25 |
| Work liquid filtrate way | Shallow seam type |
| Max pump pressure（Mpa） | 6 |
| Host outline size (L*W*H)（mm） | 1150×800×800 |
| Machine weight（kg） | 852 |
