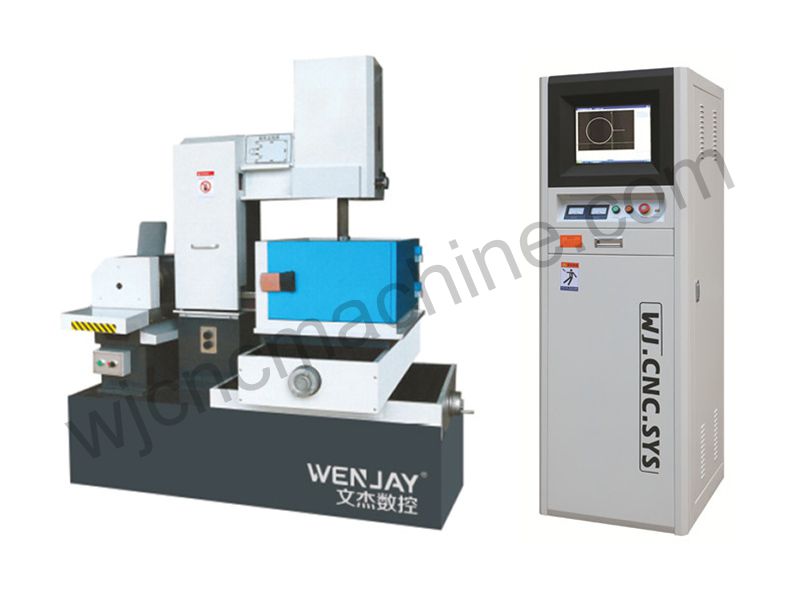

Precise Medium-Speed Wire-Moving Linear Cutting Machine Tool
Product category: Precise Medium-Speed Wire-Moving Linear Cutting Machine Tool
Product model: TI-ST
Brand: Wenjie CNC
Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.
产品详情
Reform the old and establish the new—in a natural and extraordinary way!
1. The supporting UV taper structure fully increases the stability and reliability of taper device;
2. Relying on the unique guide lifting mechanism, the overall center of gravity coincides with the guide direction, which is equipped with the precise worm and gear self-lock device, making the wire interval rise and fall smoothly and stably;
3. The advanced constant-tension mechanism requires no tightening for a long time;
4. The reasonable filtration and circulation system is convenient and practical;
5. The totally-enclosed environmentally-friendly structure with the splash-proof function is easy to operate;
6. The high-grade linear guideway of Taiwan HIWIN and the ball screw of a famous brand are adopted.
The machine tool integrates control, electronics, machinery, material, mechanics, ergonomics and aesthetics, and adopts the well-designed and carefully-manufactured integrated system, which can be called the best of similar products!
| Type | TI-35SE/ST | TI-45SE/ST |
| Worktable Size（mm） | 800×570 | 900×680 |
| X、Y axis travel（mm） | 350×450 | 450×550 |
| Max.cut thickness（mm） | 320 | 320 |
| Wire diameter range（mm） | （Molydbenum wire）Ф0.10~0.22 | |
| Wire speed（m/sec） | Variable frequency adjustable | |
| Process accuracy（mm）（Vertical） | Multi-cut: 10×10×30（Squire）≤0.010 ; One-cut≤0.012（Multi-cut）; Octagon≤0.010; Strightness≤0.010/50mm | |
| Process roughness（Ra.um） | Multi-cut: Ra≤1.2（Micro-pulsepower Ra≤0.8）（One-cut）: Ra≤2.5 | |
| Motoir drve system（axis） | AC servo motor*（Option） | |
| Screws＆Guides（X、Y） | Precision ball screw/Linear motion guides | |
| Wire tension | 3Grade（0/1/2）manual adjust | |
| Dielectric conlant Reservoir capacity | Complex or water-dissovle special coolant/65L | |
| Power supply | AC3Ф-380v/2.5kva | |
| Max.table carry（kg） | 250 | 350 |
| Net Wt.of machine Body（kg） | 1600 | 2000 |
| Host outline size (L*W*H)（mm） | 1700×1150×1700 | 1950×1350×1700 |
| Remarks: ST is stepper control type, SE servo control type | ||
