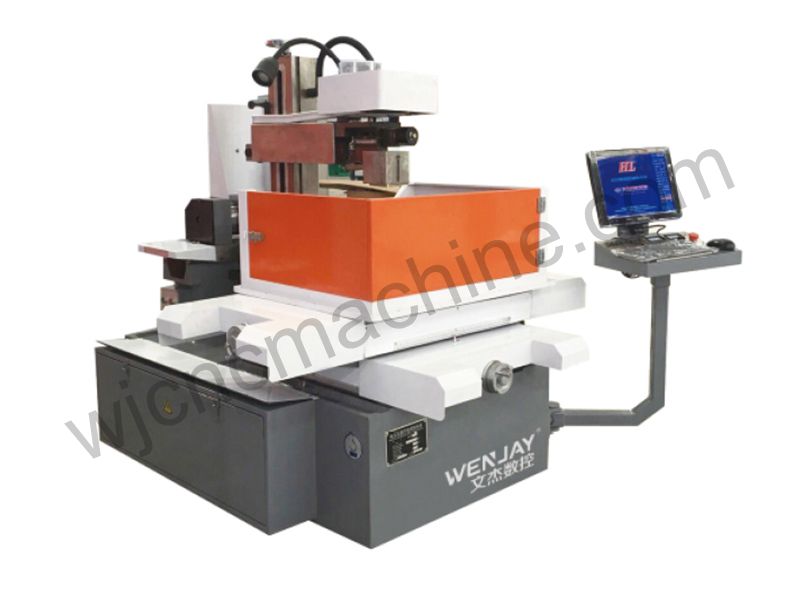

GSDK77 High-Speed Wire-Moving Cutting
Product category: GSDK77 High-Speed Wire-Moving Cutting
Product model: GSDK77
Brand: Wenjie CNC
Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.
产品详情
The new high-speed linear cutting machine tool manufactured by the Company changes the traditional structure and adopts the computer integrated control, which has the following characteristics:
★Efficiency: Cutting efficiency is 15,000 m3 per hour
★Low consumption: 600,000-800,000 m3/one litre of cutting fluid
★Environmental protection:
(1) It is equipped with automatic demist device, which eliminates the free oil, water and gas in the air and greatly improves the operating environment;
(2) cutting fluid adopts the exclusive formula, which requires no replacement for lifetime. When the concentration is low, it is necessary to add cutting fluid only, rather than dumping, which is free from contamination. ★It adopts the integrated computer control, which integrates computer, high-frequency power supply, driving power and electric equipment for machine tools, so that it is attractive, environmentally-friendly, easy to operate and reduces the floor area.
| Type | unit | GSDK7720 | GSDK7725 | GSDK7732 | GSDK7732B | GSDK7740 | GSDK7740B |
| Worktable Size (W*L) | mm | 250×420 | 330×520 | 360×600 | 410×670 | 460×680 | 520×745 |
| X,Y-axis trip（Y×X） | mm | 200×250 | 250×320 | 320×400 | 350×450 | 400×500 | 450×550 |
| U,V-axis trip（U×V） | mm | 70×70 | |||||
| Max load weight | kg | 200 | 250 | 350 | 400 | 450 | 600 |
| Max linear cutting thickness | mm | 250 | 400mm（330） | 500mm（430） | 500mm（430） | 500mm（430） | 500mm（430） |
| Machined taper/work piece thickness | 12°/80mm | ||||||
| Z-axis elevation mode | Manual/electric elevation | ||||||
| Type of guide track | Slide guide | ||||||
| Electrode wire diameter range | mm | Ф0.15~0.20mm | |||||
| Wire speed | m/sec | 1~11.4m/sec 7 frequency conversion adjustable | |||||
| Machining accuracy | mm | ≤0.015 | |||||
| Max cutting efficiency | mm²/min | ≥250 | |||||
| Optimum surface roughness | um | Ra≤2.5 | |||||
| Control mode | X, Y, U, V stepper motor | ||||||
| Number of control axis | Four-axis linkage | ||||||
| Min instruction unit | mm | 0.001 | |||||
| Power supply | Three-phase four-wire 380VAC/50HZ | ||||||
| Max operating current | A | 12 | |||||
| Machine tool power consumption | kw | ＜2 | |||||
| Working fluid | Special for Wenjie (self-made), equipped with a concentration meter | ||||||
| Working fluid tank volume | L | 55 | |||||
| Work liquid filtrate way | Strainer, magnetic plate | ||||||
| Host weight | kg | 800 | 900 | 1000 | 1100 | 1300 | 1400 |
| Host outline size | mm | 1060×800×1100 | 1400×900×1350 | 1500×1200×1400 | 1600×1300×1400 | 1700×1400×1400 | 1750×1500×1400 |
