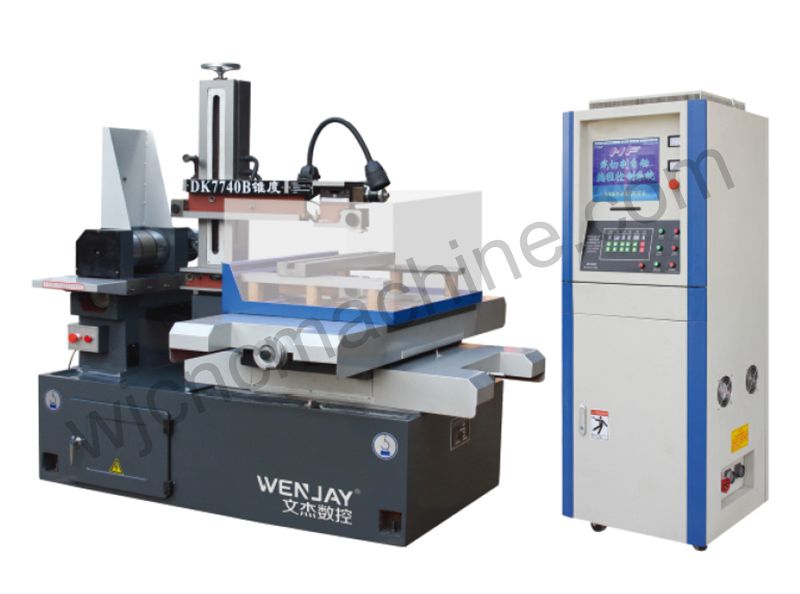

CNC Electric Spark Wire Cutting Machine Tool
Product category: CNC Electric Spark Wire Cutting Machine Tool
Product model: DK77 series wire cutting machine tool
Brand: Wenjie CNC
Manufacturer: Taizhou Wenjie CNC Equipment Co., Ltd.
产品详情
High-speed wire is a kind of Wire-Cutting Electrical Discharge Machining, also known as Wire-Cutting Electrical Discharge Machining High-Speed (WEDM-HS). Its wire electrodes (generally molybdenum wire, specifications: 0.18mm, 0.2mm, 0.22mm, 0.25mm) are in high-speed reciprocating motion. Molybdenum wire speed is 8～10m/s, adjustable. Molybdenum wire is reusable. So name because the processing speed is fast and convenient (precision is 0.05-0.08mm).
Wenjie CNC wire cutting machine tool has a good taste, high quality, super stability and low price!
| Type | unit | DK7720 | DK7725 | DK7735 | DK7735B | DK7745 | DK7745B |
| Worktable Size (W*L) | mm | 250×420 | 330×520 | 410×670 | 510×760 | 520×745 | 610×860 |
| X,Y-axis trip（Y×X） | mm | 200×250 | 250×320 | 350×450 | 350×450 | 450×550 | 450×550 |
| U,V-axis trip（U×V） | mm | 70×70 | |||||
| Max load weight | kg | 200 | 250 | 400 | 400 | 600 | 600 |
| Max linear cutting thickness | mm | 250 | 400mm（330） | 600mm（500） | 600mm（500） | 600mm（500） | 600mm（500） |
| Machined taper/work piece thickness | 12°/80mm | ||||||
| Z-axis elevation mode | Manual/electric elevation | ||||||
| Type of guide track | Slide guide | ||||||
| Electrode wire diameter range | mm | Ф0.15~0.20mm | |||||
| Wire speed | m/sec | 1~11.4m/sec 7 frequency conversion adjustable | |||||
| Machining accuracy | mm | ≤0.015 | |||||
| Max cutting efficiency | mm²/min | ≥120 | |||||
| Optimum surface roughness | um | Ra≤2.5 | |||||
| Control mode | X, Y, U, V stepper motor | ||||||
| Number of control axis | Four-axis linkage | ||||||
| Min instruction unit | mm | 0.001 | |||||
| Power supply | Three-phase four-wire 380VAC/50HZ | ||||||
| Max operating current | A | 12 | |||||
| Machine tool power consumption | kw | ＜2 | |||||
| Working fluid | DX-1 DX-4 Nanguang-1 | ||||||
| Working fluid tank volume | L | 55 | |||||
| Work liquid filtrate way | Strainer | ||||||
| Host weight | kg | 800 | 900 | 1000 | 1150 | 1300 | 1450 |
| Host outline size | mm | 1060×800×1100 | 1400×920×1350 | 1500×1200×1400 | 1600×1300×1650 | 1700×1400×1400 | 1750×1500×1650 |
